2D - 1D Scan – Barcodes - QR codes on paper or displays
Power consumption: 3.3 - 5 V DC, 120 mA
Power supply: Battery
Scan type: Image capture
Sensor: CMOS
CPU: ARM 32-Bit Cortex
Battery type: 2000 mAh Li-ion battery
Operating time: Up to 18 hours
Interface: USB
Light source: LED (CMOS)
Trigger: Pushbutton, automatic, continuous
Error rate in bits: 1/5 million, 1/20 million
Resolution: D: ≥5mil, 2D:≥ 10mil
Scan width: 10 cm
Communication range: 10 m inside; 15 m outside
Depth of field: 3.3 mil @ 2 mm-100 mm, 10 mil @2 mm-350 m; 15.6 mil @ 5 mm - 600 mm; 35 mil @ 10 mm-1000 mm
Scan angle: Angle of rotation ±360°, angle of inclination ± 60°, angle of declination ± 60°
Decoding: 1D: GS1 Data Bar, GS1-128, ISSN, MSI, Industrial 2 of 5, JAN-8, JAN-13, EAN-128, Code 32, IATA, ITF, ITF-14, Matrix 2 of 5, ITF-6, Rss limited, Rss Expanded, Deutsche 12, Industrial 25, Code 128, Codabar, UPC, CODA BAR, Code 39, Code 93, BIGCODE
Decoding 2D: PDF417, QR Code, Datamatrix
Compatible with Windows / Android / iOS / Mac / Linux systems

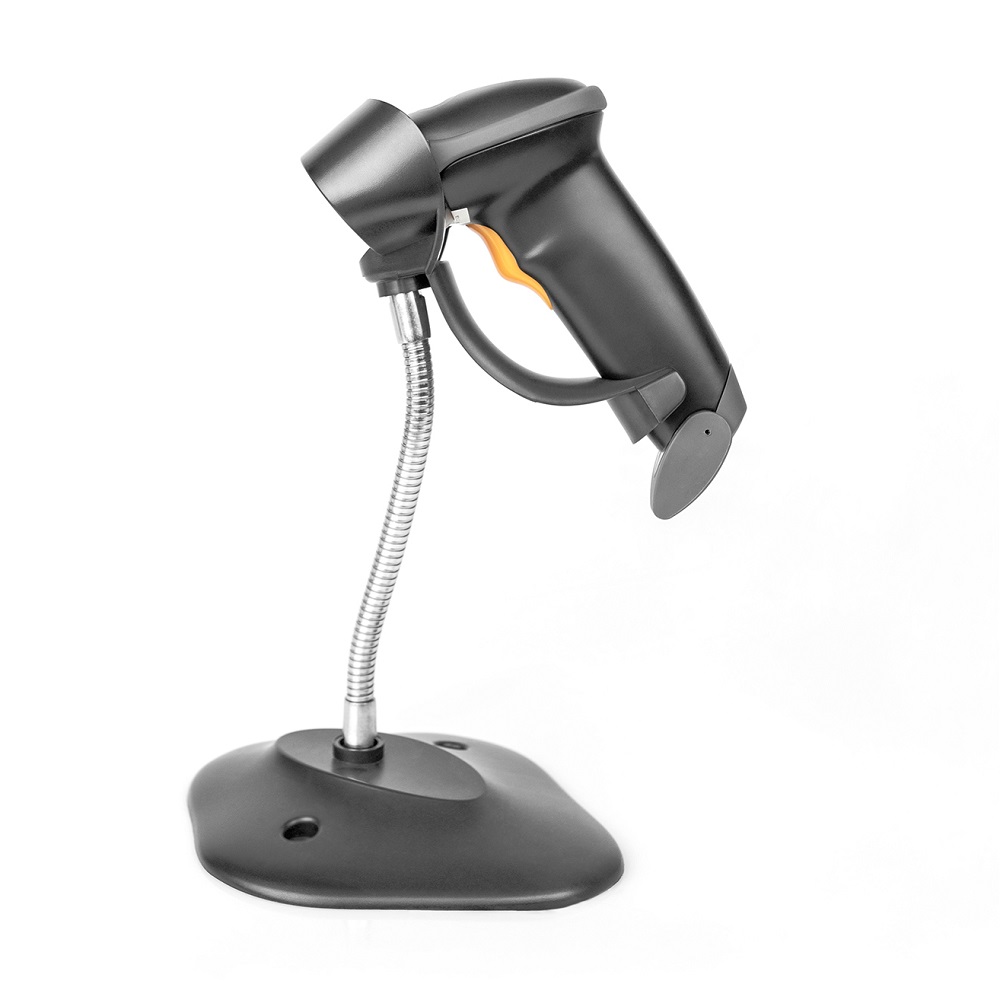

Includes scanner holder
Material: ABS + PC
Protection type: IP54
Operating temperature: -20 °C to +50 °C
Storage temperature: -40 °C to +70 °C
Compatible with Windows/ Android/iOS/Mac/Linux systems
Cable: 2 m (USB - RJ45)
Dimensions (HxWxD): 16.5 x 6.3 x 8.7 cm
Weight: 150 g
Color: Black


Package content
1 x 2D Manual Barcode Scanner, Battery-Operated, Bluetooth - QR-Code Compatible
1 x Bluetooth receiver (USB A)
1 x Holder
1 x Cable, USB - RJ45, 2 m
1 x QIG
